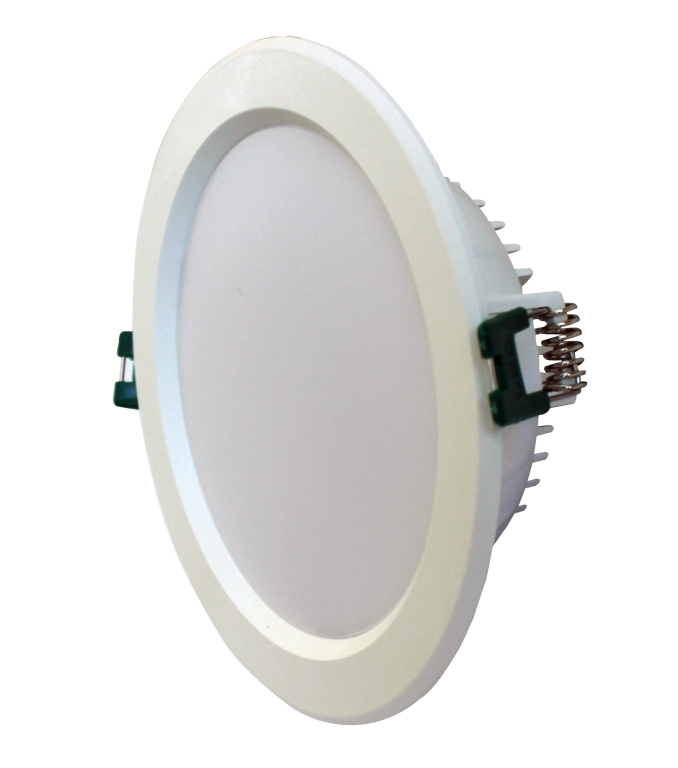

2,5″ 5W SIVA ALTI LED PANEL

Ürün Teknik Bilgisi

ANNEX V

Product information

1. Product information sheet

1.1.

Pursuant to point 1(b) of Article 3, the supplier shall enter into the product database the information as set out in Table 3, including when the light source is a part in a containing product. Table 3 Product information sheet Supplier’s name or trade mark: CHANGZHOU TOPKING INTERNATIONAL TRADE CO.LTD Supplier’s address  (1) : ROOM:409,NO:8 TAIHU EAST ROAD,NO.1 FUCHEN BUILDING CHANGZHOU,JIANGSU,CHINA Model identifier: RS-PLWW012 Type of light source: LED Lighting technology used: LED Non-directional or directional: DLS Mains or non-mains: MLS Connected light source (CLS): No Colour-tuneable light source: No Envelope: No High luminance light source: No Anti-glare shield: No Dimmable: No Product parameters产品参数 Parameter 7W Parameter 3000K General product parameters: Energy consumption in on-mode (kWh/1 000 h) 7 Energy efficiency class F Useful luminous flux (Φuse), indicating if it refers to the flux in a sphere (360°), in a wide cone (120°) or in a narrow cone (90°) 550Lm Correlated colour temperature, rounded to the nearest 100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set 3000K On-mode power (Pon), expressed in W (Pon)， 6.8w Standby power (Psb), expressed in W and rounded to the second decimal NO Networked standby power (Pnet) for CLS, expressed in W and rounded to the second decimal NO Colour rendering index, rounded to the nearest integer, or the range of CRI-values that can be set 80 Outer dimensions without separate control gear, lighting control parts and non-lighting control parts, if any (millimetre) Height 53 Spectral power distribution in the range 250 nm to 800 nm, at full-load Width 50 Depth 50 Claim of equivalent power (3) Yes If yes, equivalent power (W) 50w Chromaticity coordinates (x and y) 色度坐标 0,4388 0,4036 Parameters for directional light sources: Peak luminous intensity (cd) 14.5 Beam angle in degrees, or the range of beam angles that can be set 38 Parameters for LED and OLED light sources: R9 colour rendering index value -8 Survival factor 1 the lumen maintenance factor 0,93 Parameters for LED and OLED mains light sources: displacement factor (cos φ1) 0,5 Colour consistency in McAdam ellipses 6 Claims that an LED light source replaces a fluorescent light source without integrated ballast of a particular wattage. No If yes then replacement claim (W) x Flicker metric (Pst LM) 1 Stroboscopic effect metric (SVM) 0,9
